CE-1187

Cezoma CE-1187

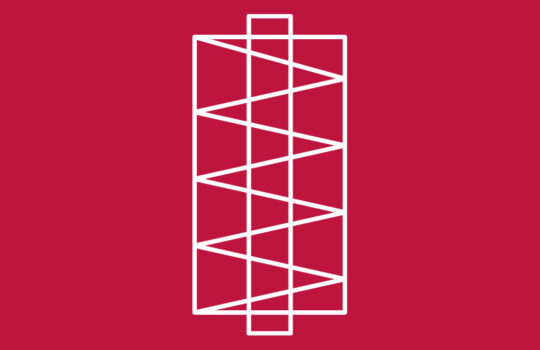

Fully automatic winder with 4 spindles for sewing thread or other yarns on tubes with cross wind and fixed traverse length to wind straight edges to the yarn packages.

In this document you will find the options of our winding systems.

  • 4 Winding spindles
  • Automatic change-over (doffing)
  • Precision wind
  • Tension control unit
  • Electronic counter for yarn length
  • Thread-breakage stop motion
  • Production counter
  • Diagnostic centre (problem shooter)
  • Safety controller
  • Service controller for maintenance
  • Motor 3 phase 0,75 kW
  • Air consumption (6 bar) 5 litre/stroke uncompressed
  • Underwinding with blower
  • Oiling device with heating
  • Oiling device without heating
  • Collecting tray
  • Hotwire cutting system
  • Pneumatic cutter
  • Electronic thread breakage detection
  • External electronic length counter
  • External mechanical length counter
  • To tail 2 cones per winding spindle for continuous feeding
  • Separate supply creel for large supplies
  • Roller tension unit
  • Knot catchers

Machine weight
– net 300 kg
– gross 445 kg

Machine dimensions
– l/w/h 135x140x160 cm

Crate dimensions
– l/w/h 153x148x172 cm

Video Cezoma CE1187
