CE-1287

Cezoma’s CE-1287

The CE-1287 is a fully automatic winding machine with four high-performance spindles, built for the precise and efficient winding of sewing thread, technical yarns, and specialty fibers onto cones.

Designed for consistency and speed, it features automatic tension control, clean yarn layering, and minimal operator input, making it ideal for industries that demand accuracy and reliable cone quality.

Whether for textile, apparel, or technical applications, the CE-1287 offers a compact, smart solution for modern winding needs.

See the full specifications and available options for the CE-1287.

  • 1287
  • CE-1287 groot

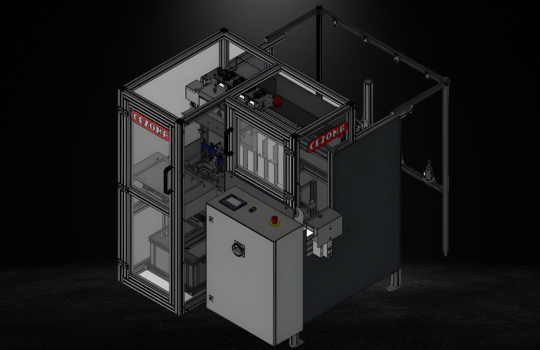

The machine shown in the picture is for illustration purpose only. Actual machines may vary due to product enhancement

  • 4 Winding spindles
  • Automatic change-over (doffing)
  • Precision wind
  • Tension control unit
  • Supply creel for 1 end/spindle
  • Production counter
  • Diagnostic centre (problem shooter)
  • Service controller for maintenance
  • Motor 3 phase 0,75 kW
  • Air consumption (6 bar) 5 litre per doffing cycle uncompressed
  • Safety stops when door is opened and safety standards to prevent accidents
  • Oiling device with heating or without heating
  • Hotwire cutting system or pneumatic cutter
  • Electronic thread breakage detection
  • External electronic length counter
  • Tail 2 cones per winding spindle for continuous feeding
  • Separate supply creel for large supplies
  • Knot catchers
  • Extended creel or separate creel for multiple end winding
  • Modem equipment for possible technical support
  • Yarn feeder device for precise control of the yarn tension
  • De-rolling DR-24 system
  • Fully motorized and controlled unwinding machine UW-23
  • Machine weight
    – net 300 kg
    – gross 445 kg
  • Machine dimensions
    – l/w/h 135x140x160 cm
    Please note: final dimensions are verified prior to shipment.
