CE-1487

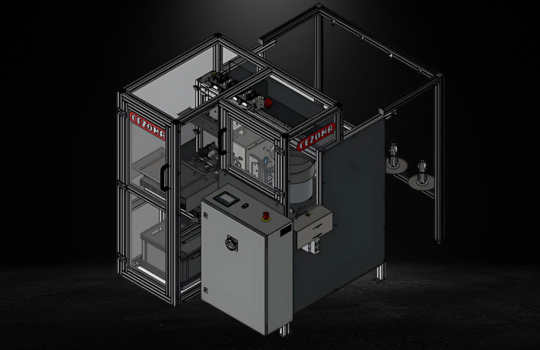

Cezoma CE-1487

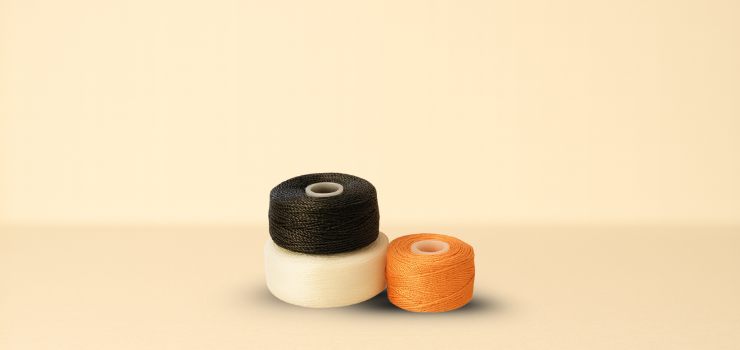

Fully automatic winder with 4 spindles for pré wound bobbins for sewing thread, embroidery yarn and dental floss, with cross wind and fixed traverse length to wind straight edges to the yarn packages.

In this document you will find the options of our winding systems.

  • 4 Winding spindles
  • Automatic change-over (doffing)
  • Precision wind
  • Oiling device
  • Supply creel for 1 end/spindle
  • Electronic counter for yarn length
  • Thread-breakage stop motion
  • Production counter
  • Diagnostic centre (problem shooter)
  • Safety controller
  • Service controller for maintenance
  • Motor 3 phase 0,75 kW
  • Air consumption (6 bar) 5 litre/stroke uncompressed
  • Electronic thread breakage detection
  • Tailtucking device
  • External electronic length counter
  • External mechanical length counter
  • Heating for oiling device
  • To tail 2 cones per winding spindle for continuous feeding
  • Separate supply creel for large supplies
  • Knot catchers

Machine weight
– net 300 kg
– gross 445 kg

Machine dimensions
– l/w/h 135x140x160 cm

Crate dimensions
– l/w/h 153x148x172 cm

Video Cezoma CE1487
