CE-1587

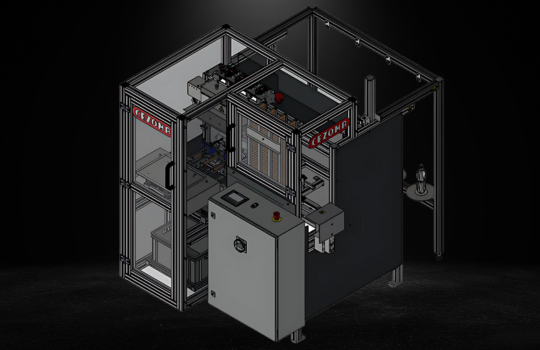

Cezoma CE-1587

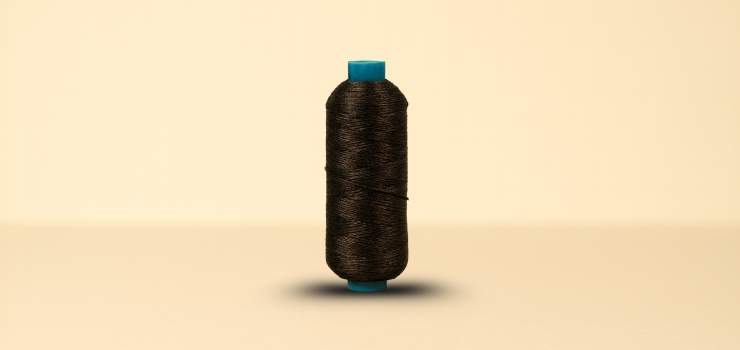

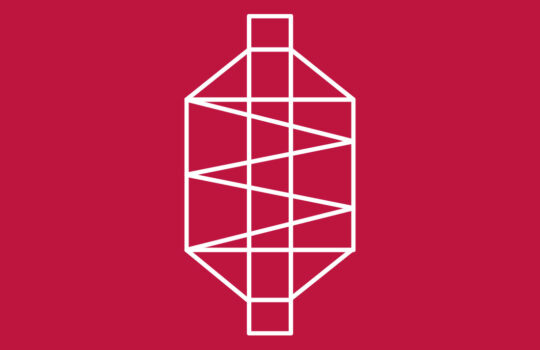

Fully automatic winder with 4 spindles for sewing thread or other yarns on tubes/cones with cross wind and adjustable traverse length and device to wind tapered edges to the yarn packages.

In this document you will find the options of our winding systems.

  • 4 Winding spindles
  • Automatic change-over (doffing)
  • Precision wind
  • Tension control unit
  • Supply creel for 1 end/spindle
  • Electronic counter for yarn length
  • Thread-breakage stop motion
  • Production counter
  • Diagnostic centre (problem shooter)
  • Safety controller
  • Service controller for maintenance
  • Motor 3 phase 0,55 kW
  • Air consumption (6 bar) 5 litre/stroke uncompressed
  • Underwinding with blower
  • Oiling device with heating
  • Oiling device without heating
  • Collecting tray
  • Hotwire cutting system
  • Pneumatic cutter
  • Electronic thread breakage detection
  • External electronic length counter
  • External mechanical length counter
  • To tail 2 cones per winding spindle for continuous feeding
  • Separate supply creel for large supplies
  • Extended creel for multiple end winding
  • Separate creel for multiple end winding
  • Roller tension unit

Machine weight
– net 300 kg
– gross 445 kg

Machine dimensions
– l/w/h 135x140x160 cm

Crate dimensions
– l/w/h 153x148x172 cm
