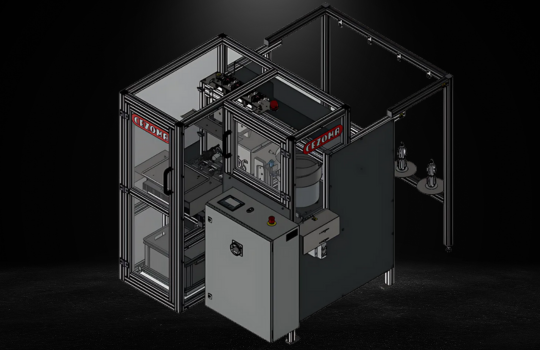

Cezoma CEP-87
Fully automatic winder with 4 spindles for sewing thread or other yarns with parallel wind and adjustable traverse length and device to wind tapered edges to the yarn packages.
In this document you will find the options of our winding systems.
- 4 Winding spindles
- Automatic change-over (doffing)
- Precision wind
- Tension control unit
- Supply creel for 1 end/spindle
- Electronic counter for yarn length
- Thread-breakage stop motion
- Production counter
- Diagnostic centre (problem shooter)
- Safety controller
- Service controller for maintenance
- Motor 3 phase 0,75 kW
- Air consumption (6 bar) 5 litre/stroke uncompressed
- Tailtucking device
- Snapspool system
- Oiling device with heating
- Oiling device without heating
- Collecting tray
- Hotwire cutting system
- Pneumatic cutter
- Electronic thread breakage detection
- External electronic length counter
- External mechanical length counter
- To tail 2 cones per winding spindle for continuous feeding
- Separate supply creel for large supplies
- Volume device
- Knot catchers
Machine weight
– net 300 kg
– gross 445 kg
Machine dimensions
– l/w/h 135x140x160 cm
Crate dimensions
– l/w/h 153x148x172 cm
