PW-22

Cezoma’s PW-22

The PW-22 is a fully automatic machine with precise yarn control, built for the smooth and efficient processing of sewing thread, technical yarns, and fine filaments in various production setups.

Designed for reliability and flow, it features automatic tension control, stable yarn handling, and minimal operator input, making it ideal for industries that require precision and continuous performance.

Whether for textile, medical, or technical applications, the PW-22 offers a compact, intelligent solution for modern production needs.

See the full specifications and available options in this document.

  • Cezoma-PW-22-Machine
  • Cezoma-PW-22

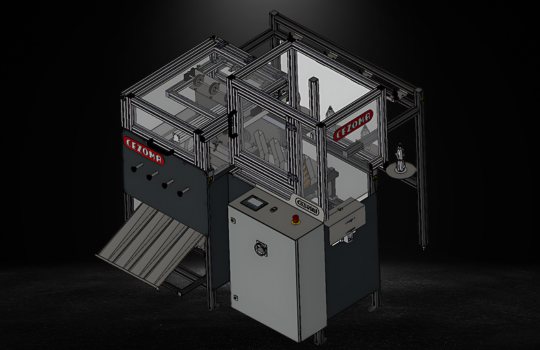

The machine shown in the picture is for illustration purpose only. Actual machines may vary due to product enhancement

  • 4 Winding spindles
  • Automatic change-over (doffing)
  • Precision wind
  • Tension control unit
  • Electronic counter for yarn length
  • Thread-breakage stop motion
  • Production counter
  • Diagnostic centre (problem shooter)
  • Service controller for maintenance
  • Automatic stop when door is opened and safety standards to prevent accidents
  • Motor 3 phase 0,75 kW
  • Air consumption (6 bar) 5 litre/stroke uncompressed
  • Oiling device with heating or without heating
  • Hotwire cutting system or pneumatic cutter
  • Electronic thread breakage detection
  • External electronic length counter
  • Tail 2 cones per winding spindle for continuous feeding
  • Separate supply creel for large supplies
  • Knot catchers
  • Extended creel or separate creel for multiple end winding
  • Modem equipment for possible technical support
  • GRAF Single Lub 2 oiling device including piping and pump
  • Yarn feeder device for precise control of the yarn tension
  • De-rolling DR-24 system
  • Fully motorized and controlled unwinding machine UW-23
  • Machine weight
    – net 300 kg
    – gross 400 kg
  • Machine dimensions
    – l/w/h 162x110x161 cm
    Please note: final dimensions are verified prior to shipment.
